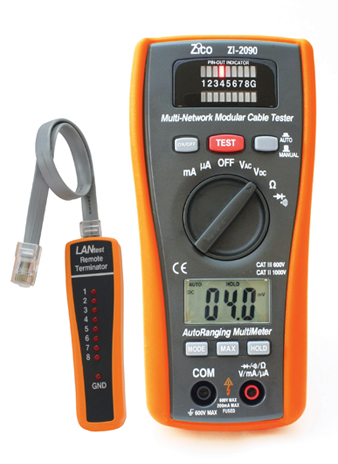

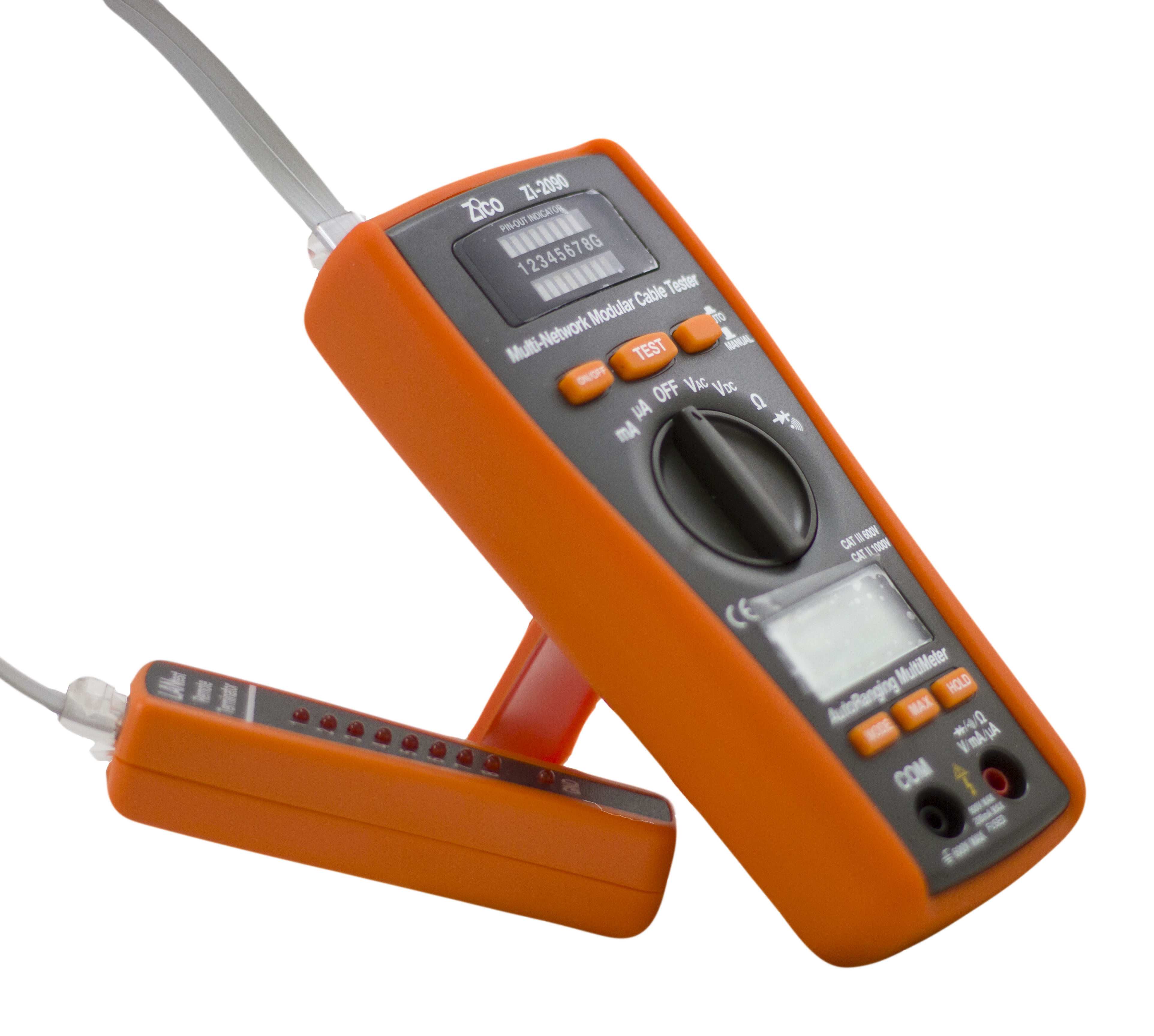

ZI-2090 Wire Tester & Multimeter

 LAN Tester & DMM
Testing the correct configuration & connecting
for 8 wires/connecting + Ground
Testing  all wires- Automatic from 1 to 8
or Testing each wire by push button


Features

Specification - DMM:
AC/DC Voltage up to 600V
AC/DC Current up to 200mA
Resistance up to 20MW
Continues test beep if less then 100W

Specification - LAN tester:
Test the correct pin configuration of:
10 Base-T cable (category 5)
10 Base-2 cable (coax)
Thin Ethernet cable,
RJ45/RJ11modular cables
356A,
TIA-568A/568B
Up to 300m cable test

Size (H*W*D) 162mm*74.5mm*44mm
Weight 308gr

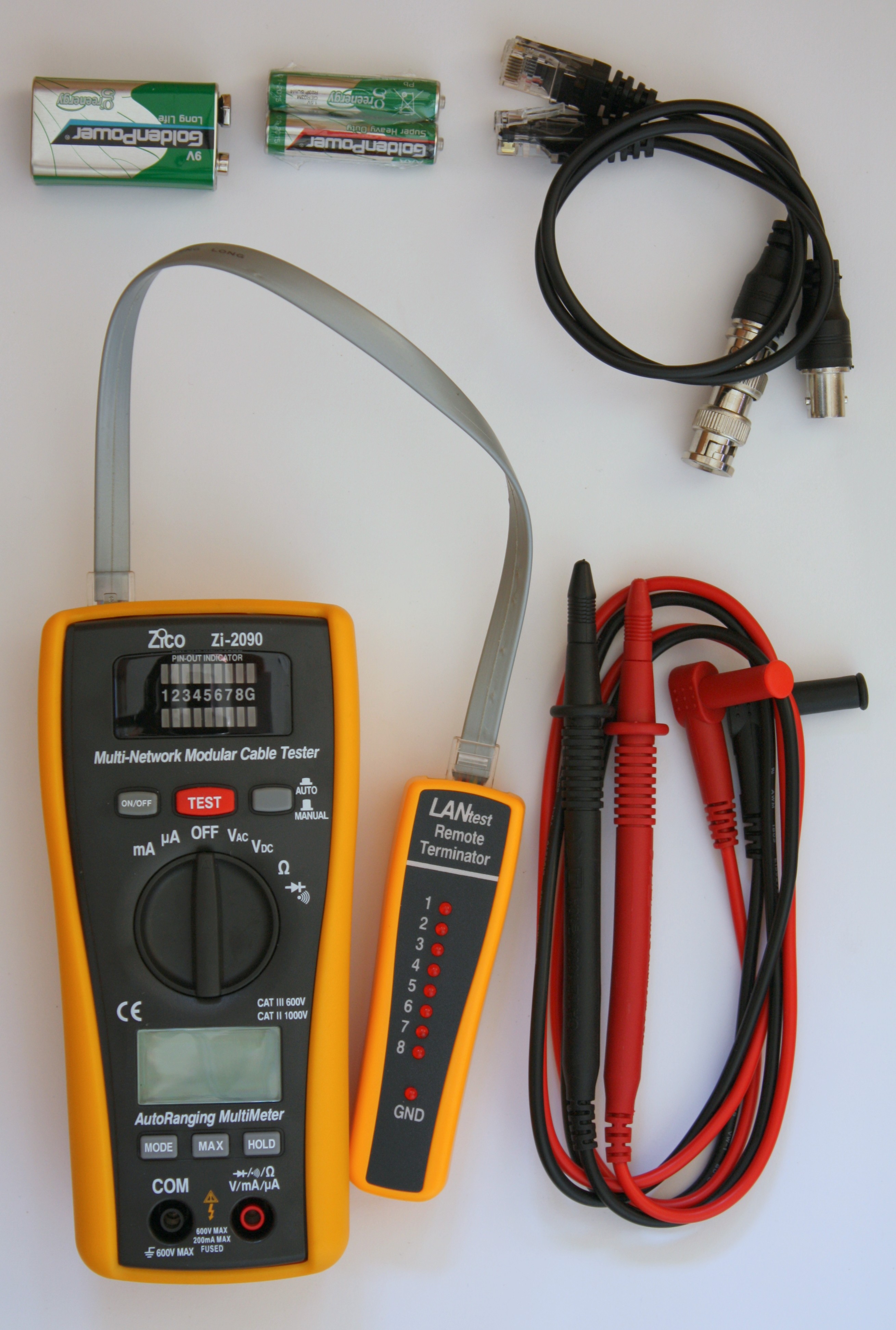

Accessories:
9V Battery & AAA*2 battery

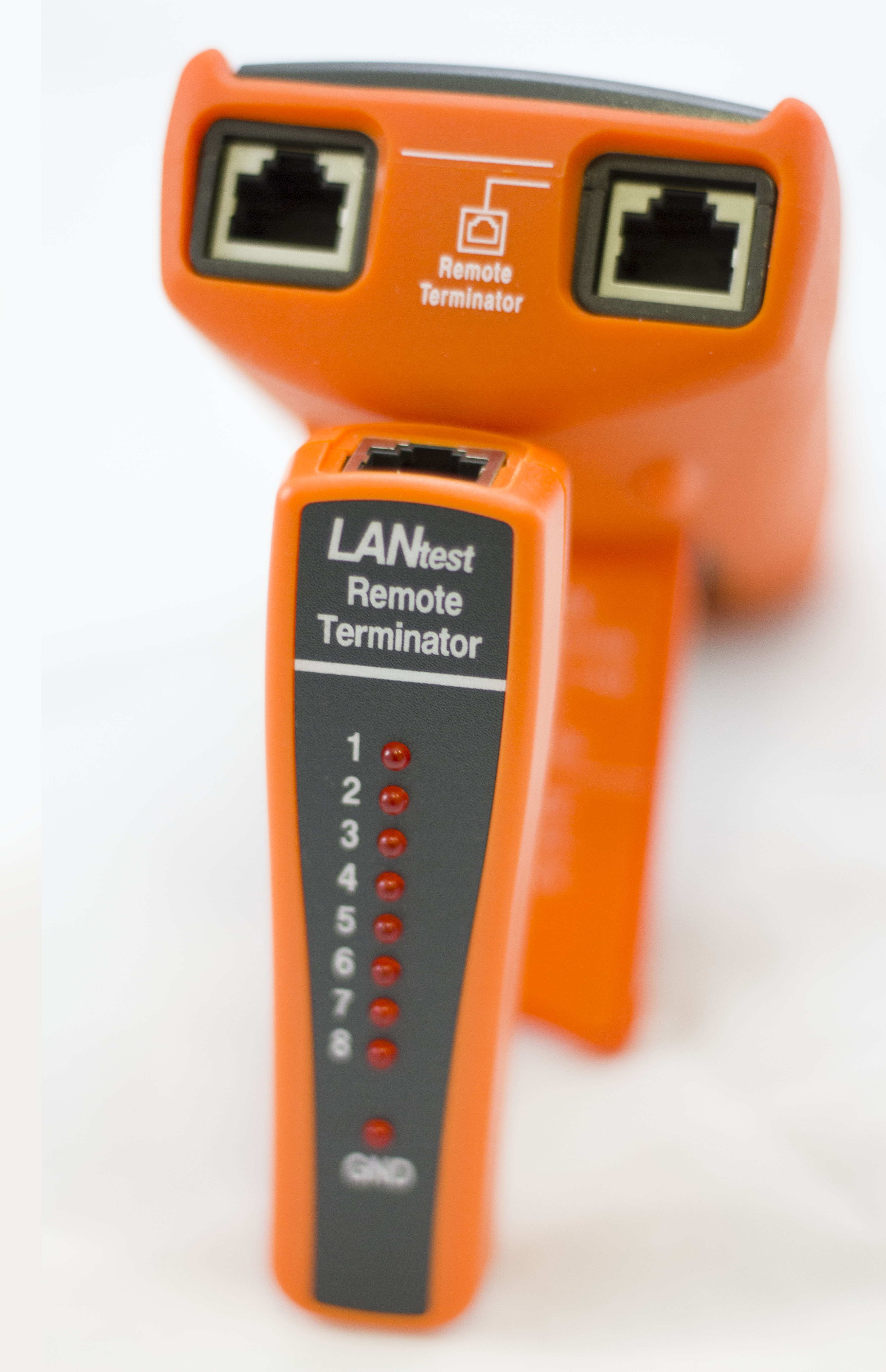

Remote terminator
Cables
Test leads
Carrying case

Downloads

Product Manual


Product full specifications
