ZI-9100 Digital Insulation Tester
Professional Digital Insulation Tester
New High Tech Insulation Tester
Huge LCD & Backlight
Test Hold Function for easy Operation
Insulation Voltage testing 250 , 500 & 1000V (3 in 1)
Insulation testing up to 2000M
CAT III 1000V
New High Tech Insulation Tester
Huge LCD & Backlight
Test Hold Function for easy Operation
Insulation Voltage testing 250 , 500 & 1000V (3 in 1)
Insulation testing up to 2000M
CAT III 1000V
Features
Insulation Testing
250V - 200MW
500V - 200MW
1000V - 2000MW
AC-V up 750V
DC-V up to 1000V
Resistance Up to 2000W
Resistance Up to 2000W
Continuity Test & buzzer
Operation Temp 0ºC to 40ºC
Operation Humidity Up to 80% R.H
Test Current <200mA
Size (H*W*D): 200m x 92mm x 50mm
Weight: 582g

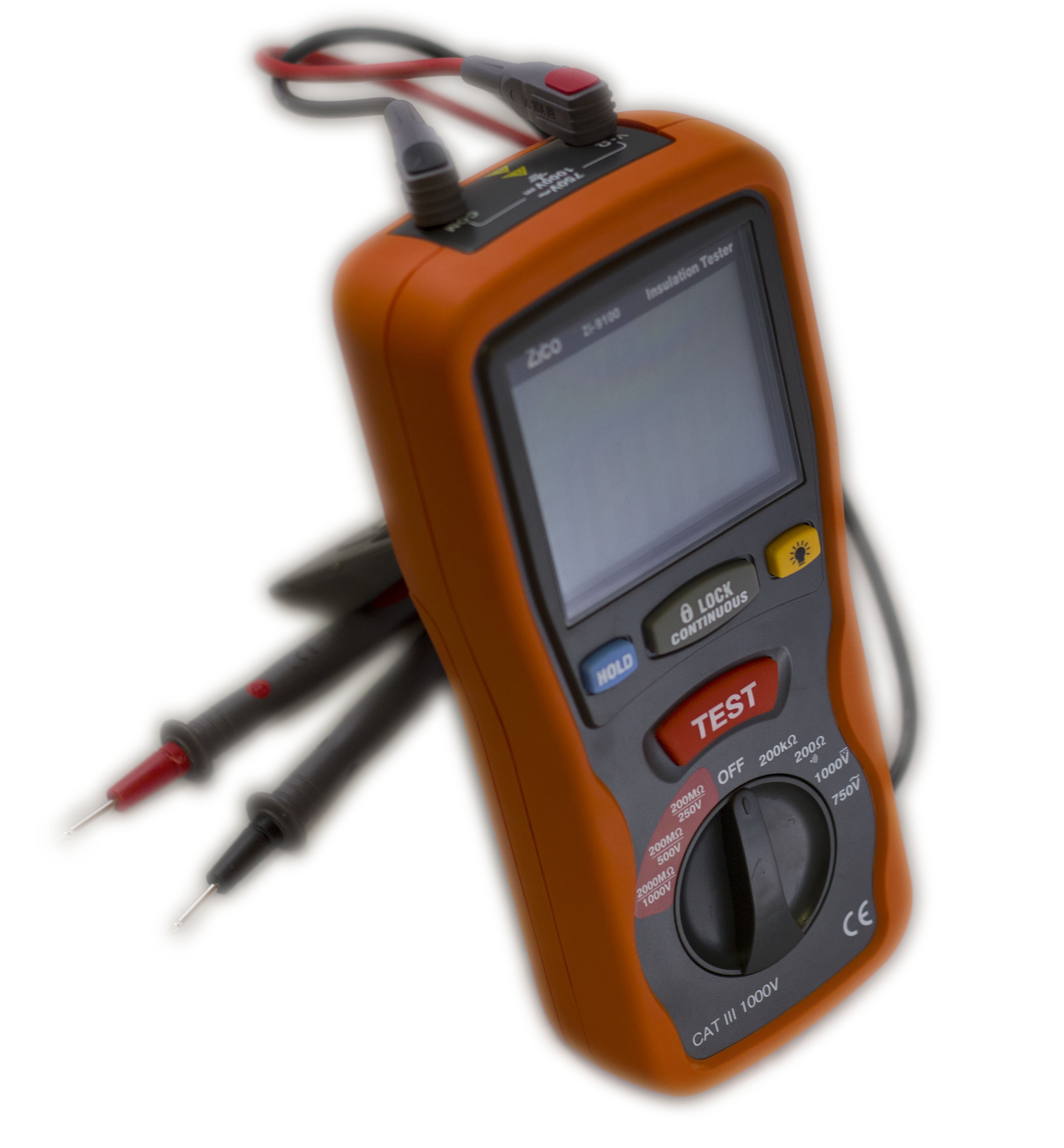

Accessories: Test lead, Carrying case, x6 AA Batteries
